F- tone公司专业研发制造10G SFP+有源光缆、10G SFP+ AOC、10G SFP+ Active Optical Cable。遵 从的标准: SFF-8431 SFP+ Multi‐Source Agreement 10Gb/s SFP+ 有源光缆传输距离抵达300米(OM3万兆多模) 光口不过露,具有极高的可靠性 低本钱优势 低功耗小于0.9W(每端) F-tone公司提供300米以内的长度定制化的选择。100%完美兼容全系列品牌效劳器,交换机,路由器,PDH/SDH传输设备,EPON,GPON,10G EPON,10G GPON,WDM PON基站等等全系列设备
Features
¨ Electrical interface compliant to SFF-8431
¨ Hot Pluggable
¨ 850nm VCSEL transmitter, PIN photo-detector receiver
¨ Up to 300m on OM3 MMF
¨ Operating case temperature: 0 to 70℃
¨ All-metal housing for superior EMI performance
¨ RoHS compliant (lead free)
Applications
¨ 10 Gigabit Ethernet
¨ 4G and 8G Fibre Channel Applications
¨ 1x InfiniBand QDR. DDR, SDR
¨ High-performance computing clusters
¨ Servers, switches, storage and host card adapters
Description

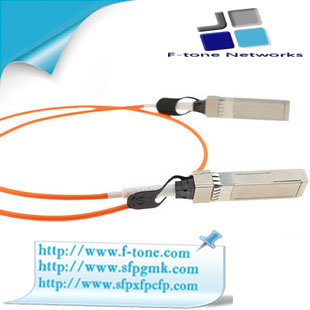

F-tone SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. F-tone SFP+ Active Optical Cables’s length is up to 300 meters on OM3 MMF.
SFP+ AOC Specifications
Parameter |
Description |
Module Form Factor |
SFP+ (Supports SFF8431/SFF8432/SFF8472) |
Protocols Supported |
InfiniBand, Ethernet, Fiber Channel |
Channel Data Rate |
Rate 1 to 10.3125Gbps |
BER |
<10-12 |
Operating Case Temperature |
0 to + 70?C |
Storage Temperature |
-20 to + 85?C |
Supply Voltage |
3.3V |
Supply current |
230mA per end typical |
Management Interface Serial |
I2C (Supports SFF8472) |
Optical characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
Transmitter |
||||||
Center Wavelength |
λt |
840 |
850 |
860 |
nm |
|
RMS spectral width |
Pm |
- |
- |
Note 1 |
nm |
|
Average Optical Power |
Pavg |
-6.5 |
- |
-1 |
dBm |
2 |
Extinction Ratio |
ER |
3.5 |
- |
- |
dB |
3 |
Transmitter Dispersion Penalty |
TDP |
- |
- |
3.9 |
dB |
|
Relative Intensity Noise |
Rin |
- |
- |
-128 |
dB/Hz |
12dB reflection |
Optical Return Loss Tolerance |
- |
- |
12 |
dB |
||
Receiver |
||||||
Center Wavelength |
λr |
840 |
850 |
860 |
nm |
|
Receiver Sensitivity |
Psens |
- |
- |
-11.1 |
dBm |
4 |
Stressed Sensitivity in OMA |
- |
- |
-7.5 |
dBm |
4 |
|
Los function |
Los |
-30 |
- |
-12 |
dBm |
|
Overload |
Pin |
- |
- |
-1.0 |
dBm |
4 |
Receiver Reflectance |
- |
- |
-12 |
dB |
Note:
1. Trade-offs are available between spectral width, center wavelength and minimum OMA, as shown in table 6.
2. The optical power is launched into MMF
3. Measured with a PRBS 231-1 test pattern @10.3125Gbps
4.Measured with a PRBS 231-1 test pattern @10.3125Gbps,BER≤10-12.
Ordering information
Part Number |
Product Description |
SFP-10GAOC-1 |
1 meter SFP+ Active Optical Cable |
SFP-10GAOC-2 |
2 meter SFP+ Active Optical Cable |
SFP-10GAOC-3 |
3 meter SFP+ Active Optical Cable |
SFP-10GAOC-5 |
5 meter SFP+ Active Optical Cable |
SFP-10GAOC-7 |
7 meter SFP+ Active Optical Cable |
SFP-10GAOC-10 |
10 meter SFP+ Active Optical Cable |
SFP-10GAOC-XX |
10G SFP+ Active Optical Cable up to 300m on OM3 MMF |
xxx :001~100,1~300 Length in meters(OM3 fiber is available) |
