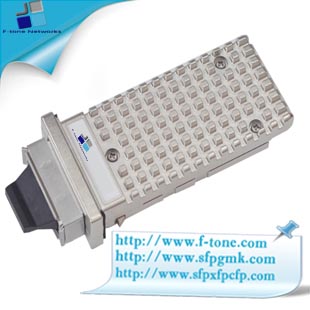

X2-10G-LRM,10GBASE X2 LRM 1310nm 220m Multi-Mode Optical Transceiver,Manufacturer: F-tone,Product Type: X2 transceiver module,Interfaces/Ports: 1 x 10GBase-LRM,Interfaces/Ports Details: 1 x SC Duplex Connector 10GBase-LRM,Average Output Power:-5.2~0dBm,Receiver Sensitivity:-14.4dBm,Data Transfer Rate: 10 Gbps,Wavelength: 1310nm,Transfer Distance: 220m,Built-in Digital Diagnostic Function

X2-10G-ZR,10GBASE X2 ZR 1550nm 80km Single-Mode Optical Transceiver,The 10G X2 80km transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications.

BIDI X2 TX1330nm/RX1270nm Transceiver,10GB BIDI X2 Simplex SC 1270/1330nm 0~160km Optical Transceiver,The BiDi X2 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the X2 20-pin connector to allow hot plug capability.

CWDM X2 40km Transceiver,The 10G CWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with a directly modulated CWDM EML laser, a receiver with a APD photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

F-tone Dense Wavelength-Division Multiplexing (DWDM) X2 pluggable module allows enterprise companies and service providers to offer scalable and easy-to-deploy 10 Gigabit Ethernet services in their networks. Both DWDM X2 ER 40km and DWDM X2 ZR 40km are available for DWDM 10G Ethernet application, DWDM grid 100Ghz and 50Ghz.

10GBASE 100GHz DWDM X2 40km Single-Mode Optical Transceiver,The 10G DWDM X2 transceivers are high performance, serial optical transponder module for high-speed, 10Gbit/s data transmission applications. The module is fully compliant to IEEE 802.3ae standard for Ethernet, making it ideally suited for 10GbE datacom (rack to-rack, client interconnection) applications. The transponder module comprises a transmitter with DWDM cooled EML laser, a receiver with a PIN photodiode, a XAUI-Attachment Interface, an integrated Coder /Decoder and multiplexer / de-multiplexer (SERDES: Serializer/Deserializer).

X2 to SFP+ converter

F-tone Networks X2 to SFP+ and XENPAK to SFP+ converter enables migration from X2/XENPAK form factors to SFP+ without having to upgrade or replace the switches. Can be used with SR, LR, EZ, ZR, BIDI, CWDM or DWDM F-tone Networks SFP+ optical transceivers.
