小型化卡扣式MT型光纤连接器

小型化卡扣式MT型光纤连接器

0.0/5 rating (0 votes)

Description

小型化卡扣式MT型光纤连接器

型号说明:该产品为小型化卡扣式MT型光纤连接器,外壳体为不锈钢质料,可以装入1只MT 十二芯或二十四芯插芯 。

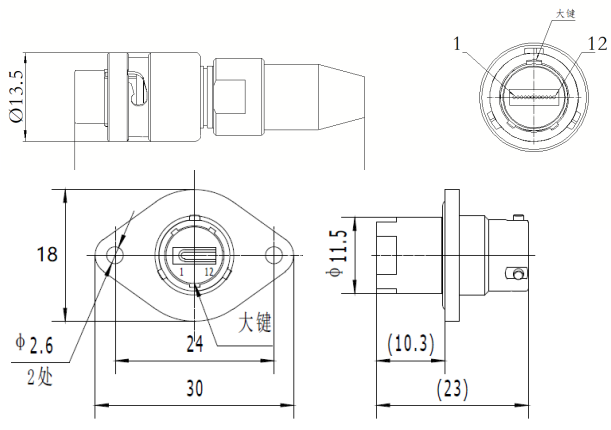

1.产品外形图
插头连接器外形图

D91D91

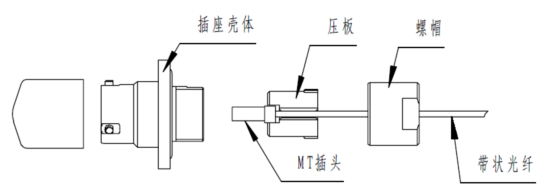

装置方法

D92

说明:
使用时将插座尾端的螺帽和压板取下,按图4 顺序套在MT12 芯接触件跳线上,然后装入壳体中,并拧紧螺帽,装置时应注意跳线孔位顺序与插座头端顺序坚持一致 ;若装入MT12 芯接触件跳线后无需再拆卸,建议装入跳线并测试及格后对壳体与螺帽的螺纹连接处点螺纹胶处理,以避免松脱 。

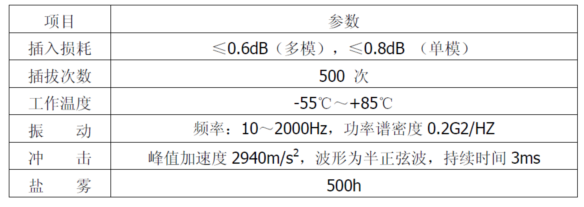

2.产品性能指标

D93













注:本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
